FIREROL Thin Wall Single Core Unsheathed Cables 250V
NF F 63-808 (FRF-TW-025SU)
Application
These cables are used as signal and control cable for protected installations inside and outside of rail and
transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses,
switchboards and control panels, driver desks etc

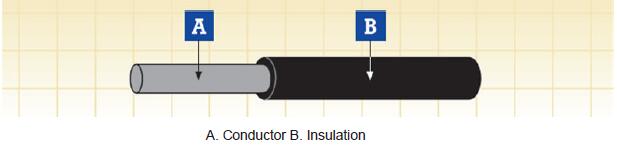

Construction
Conductor
Stranded tinned copper wires
Insulation
Radiation crosslinkable LSZH compound
Electrical & Mechanical Properties
Nominal Voltage 250V
Maximum Conductor Temperature 105°C/125°C
Temperature Range -40°C~+105°C
Bending Radius 5 × Overall Diameter
Standards
NF F 63-808
NF F 16-101
BS 6853
DIN 5510
Fire Performance in general
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulatedwire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24; Vertical flame spread of vertically
mounted bunched wires or cables NF C 32-070 2.2 (C1); VDE 0472 Teil 804
EN 50268-2; IEC 61034-2; NF C 32-073 ; Low Smoke Emission NF C 20-902; NF F 16 101; VDE 0472 Teil 816
EN 50267-2-1; IEC 60754-1; NF C 32-074; Halogen Free
NF C 20-454; VDE 0472 Teil 815
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; Low Corrosivity (Acidity & Conductivity) NF C 20-453; VDE 0472
Teil 813
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity
NF F 63 808; BS6853; NF F 16 101 Smoke index
FRF-TW-025SU 250V
Nominal Cross Sectional Area |
Number & Nominal Diameter of Strands |
Overall Diameter |
Weight |
|
|---|---|---|---|---|
Min. |
Max. |
|||
mm² |
No/mm |
mm |
mm |
kg/km |
0.38 |
19/0.16 |
1.15 |
1.35 |
4.7 |
0.60 |
19/0.20 |
1.30 |
1.55 |
6.5 |
0.93 |
19/0.25 |
1.55 |
1.80 |
9.9 |
1.34 |
19/0.30 |
1.80 |
2.00 |
14.0 |
1.82 |
37/0.25 |
2.10 |
2.40 |
18.4 |
2.61 |
37/0.30 |
2.50 |
2.80 |
27.8 |
4.32 |
61/0.30 |
3.00 |
3.30 |
44.2 |
